Storage Rack Vertical Post Section Roll Forming Machine With Punching Unit For Various Patterns

Storage Rack Vertical Post Section Roll Forming Machine With Punching Unit For Various Patterns

    • Storage Rack Vertical Post Section Roll Forming Machine With Punching Unit For Various Patterns
    • Storage Rack Vertical Post Section Roll Forming Machine With Punching Unit For Various Patterns
    • Storage Rack Vertical Post Section Roll Forming Machine With Punching Unit For Various Patterns
    • Storage Rack Vertical Post Section Roll Forming Machine With Punching Unit For Various Patterns
  • Storage Rack Vertical Post Section Roll Forming Machine With Punching Unit For Various Patterns

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-STORAGE

    Payment & Shipping Terms:

    Packaging Details: Main machine is nude packing and fastened inside of the container, electric and hydraulic parts are wrapped with plastic film.
    Delivery Time: 60 to 75 days
    Payment Terms: 30% TT in advance, 70% TT after machine check and acceptance before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Application: Used To Produce Upright Racks For Storage System Rollforming Speed: 10-15m/min
    Control System: PLC Control System Drive System: Electrically Chain Drive
    Cutting System: Hydraulically Powered Cutting Punching System: Hydraulic Powered Punching



    Storage Rack Vertical Post Section Roll Forming Machine



    Description

    BELIEVE INDUSTRY COMPANY dedicate to desiging and manufacturing metal roll forming machines for storage system. We have machine for warehouse storage rack post sections, beams, brace sections, supermarket shelf panels, etc.

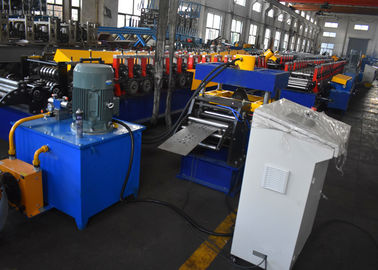

    Storage rack post section roll forming line mainly consists of decoiler, levelling unit, punching unit, roll forming unit, cutting unit, control system and hydraulic system. Due to continuous punching, whole line speed of standard design is only 2-3 meters per minute. We have improved design to increase line speed for large production.





    Whole Line Layout

    Storage Rack Vertical Post Section Roll Forming Machine With Punching Unit For Various Patterns

    1.  Control System  PLC control system
    2.  Drive System  Electric gear box drive system
    3.  Cutting System  Hydraulic powered cutting system
    4.  Punching System  Hydraulic powered punching system





    Machine Features

    • Capable for producing storage post sections with sizes from 75mm to 120mm or as per clients' requirement.
    • Various punching patterns such as tear-drop style and slotted & square style, etc.
    • Can be cut at any length as required.
    • With famous brand PLC control system.
    • Electrically gear box drive system, machine runs stable with long service life.

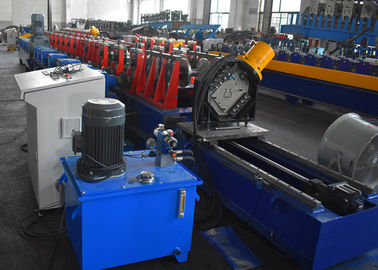

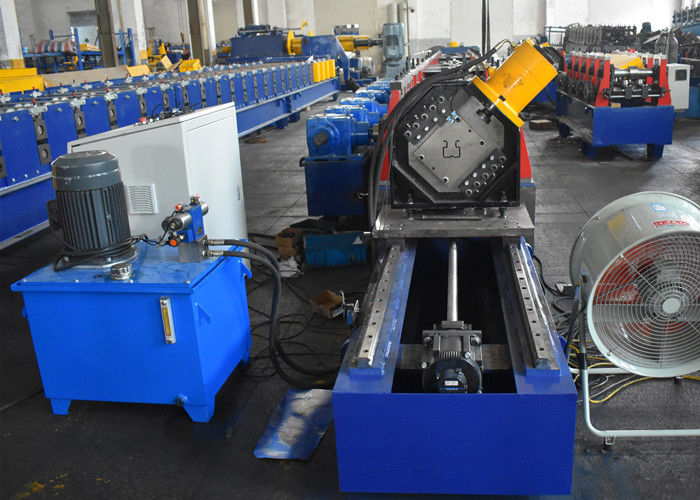

    • Servo flying cutting system, continuous production, high precision of cutting length.





    Vertical Post Section Sizes Adjustment

    • Manually adjustment: adjust the spacers to change the gap between opposite rollers for different sizes.
    • Automatically adjustment: roller stands can move in and out through the linear guide to change the gap between rollers automatically, users key in related data through touch screen.





    Punching Options

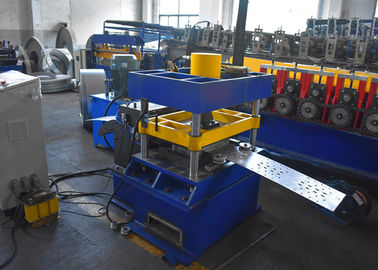

    • Hydraulic punching unit: low cost, low speed
    • Power press: high speed and high precision, cost is a higher than hydraulic punching unit





    For more machine details, please contact us.
