Name: Supermarket Shelf Panel Roll Forming Machine, Store Display Shelf Rollforming Machine
Brand: BELIEVE INDUSTRY
SKU: BELI-RACK
Rating: 4.7 (159 reviews)

Home Products Storage Rack Roll Forming Machines

Supermarket Shelf Panel Roll Forming Machine, Store Display Shelf Rollforming Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	BELIEVE INDUSTRY
Certification:	CE
Model Number:	BELI-RACK

Payment & Shipping Terms:

Packaging Details:	Nude packing and fastened inside of the container with steel wire. Electric and hydraulic parts are wrapped with plastic film.
Delivery Time:	60 to 75 days
Payment Terms:	30% TT in advance, 70% TT before delivery after machine check and accept
Supply Ability:	45 sets per quarter

Contact Now

Detailed Product Description

Machine Type:	Cold Roll Forming Machine	Application:	Applied For Producing Supermarket Racks And Shelves
Material Can Be Roll Formed:	Cold Rolled Steel	Material Thickness:	0.5-1.0mm
Control System:	PLC Control System	Drive System:	Electric Chain Drive

Supermarket Shelf Panel Roll Forming Machine, Store Display Shelf Rollforming Machine

Description

Cold Rollforming Machines are widely used in storage racking and shelving industry. Most of the metal products of storage system can be produced by metal rollformer including logistic warehouse racks, step beams, box beams, brackets, supermarket display shelf panels and back support panels, etc.

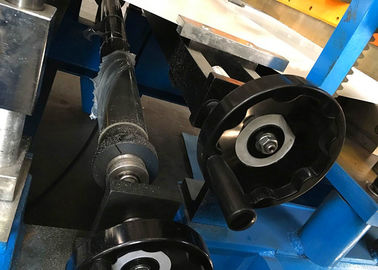

Shelf panel roll forming machine is capable of producing shelf panels up to 1000mm width or customized measurements as required. Rollforming stands move through the linear guide to adjust the gap between rollers for producing different sizes of panels. Double-wall-panel type roller stands are strongers than single-wall-panel structure. Both up and bottom rollers are driven rollers, more powerful and stable.

Whole Line Components

No.	Main Components		Qty
1.	5Ton Decoiler		1 set

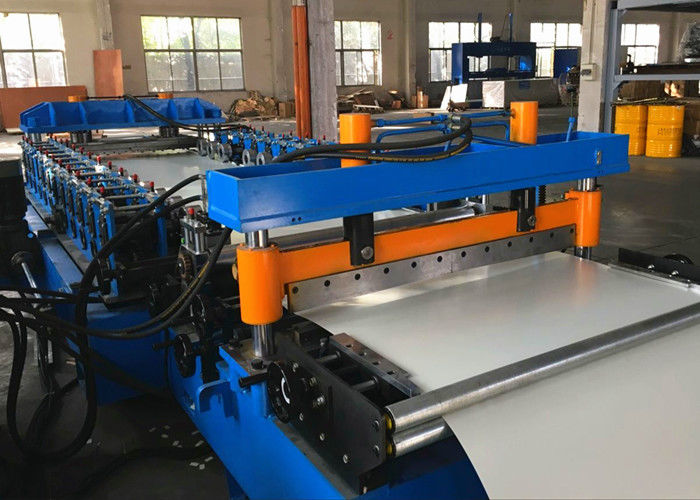

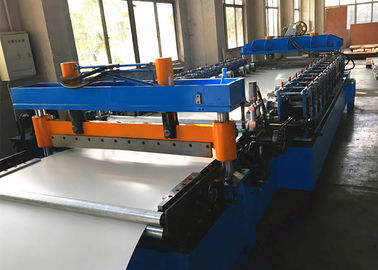

2.	Roll Forming Machine	> Feeding And Guiding Unit	1 set
		> Hydraulic Pre-cutting Unit
		> Film Covering Unit

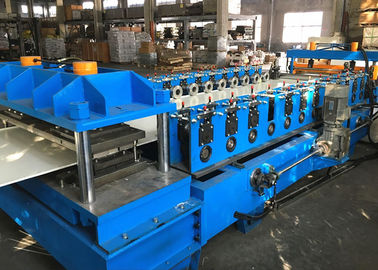

		> Roll Forming Unit

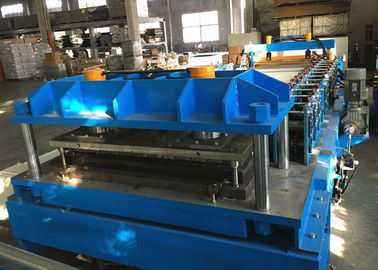

		> Hydraulic Cutting And Bending Unit
3.	Run Out Table		1 set
4.	Electric Control System		1 group
5.	Drive System		1 group
6.	Hydraulic System		1 group

Supermarket Shelf Panel Roll Forming Machine, Store Display Shelf Rollforming Machine

Working Process: coil unwinding --> material feeding & guinding --> filming --> roll forming --> cutting and bending --> final product

Final Product

Perfect flatness and straighteness of final product, no flaring, twist.
Good quality of product surface, covered with plastic film to protect the product surface.
High accuracy of cutting length, can be cut at any length as required.
