Automatic Roll Forming Machine Parts , Efficient 5 Ton Electric Decoiler

Product Details:

Place of Origin:	CHINA
Brand Name:	Believe Industry Company
Certification:	CE
Model Number:	5Ton Decoiler

Payment & Shipping Terms:

Packaging Details:	Wrapped with plastic film, fastened inside the container with steel wire.
Delivery Time:	15-30 days
Payment Terms:	T/T, L/C
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Loading Capacity:

5Ton

Decoiling Type:

Automatic Decoiling

Expansion Type:

Manual Adjust

Expansion Range:

480-520mm

High Light:

roll former parts

roll former accessories

5Ton Electric Decoiler

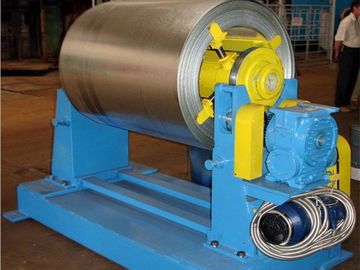

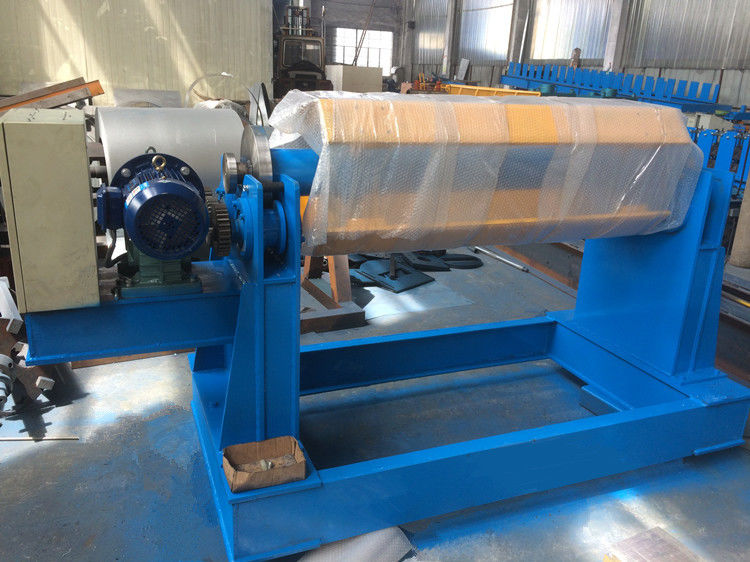

1. Application: used for supporting steel coils for roll forming lines, coil slitting lines, cut to length line, etc.

2. Decoiling is drive by 4kw motor, expansion and tension is manual adjust.

3. When the material thickness is less than 0.2mm, coil material could be damaged by unpowered pulling. Electric decoiler will be a better choice.

4. Can be ordered separately if clients only need a decoiler instead of a whole machine line.

Automatic Roll Forming Machine Parts , Efficient 5 Ton Electric Decoiler 5T Manual Decoiler

Automatic Roll Forming Machine Parts , Efficient 5 Ton Electric Decoiler 5T Electric Decoiler

Automatic Roll Forming Machine Parts , Efficient 5 Ton Electric Decoiler 5T Hydraulic Decoiler

No.	Item	5Ton Manual Decoiler	5Ton Electric Decoiler	5Ton Hydraulic Decoiler
1.	Type	Unpowered	Automatic	Automatic
2.	Structure	Tube steel welded base	Beam steel welded base	H beam steel welded base
3.	Loading Capacity	5000kg	5000kg	5000kg
4.	Decoiling	Unpowered	Electric Decoiling	Electric Decoiling
5.	Expansion	Manual Adjust	Manual Adjust	Hydraulic Expansion
6.	Motor	/	4kw	4kw
7.	Hydraulic Station	/	/	3kw
