| Place of Origin: | CHINA |
| Brand Name: | Believe Industry Company |
| Certification: | CE |
| Model Number: | 5Ton Decoiler |
| Packaging Details: | Standard Seaworthy Packing |
|---|---|
| Delivery Time: | 15 days |
| Payment Terms: | 30% TT in advance, 70% TT before shipment |
| Supply Ability: | 50 sets per months |
| Capacity: | 5Ton; 5000Kg | Type: | Manual Adjust |
|---|---|---|---|
| Structure: | Beam Steel And Steel Plated Welded Frame | Function: | Support Steel Coils |
| Highlight: | roll former parts,roll forming machine spare parts |
||

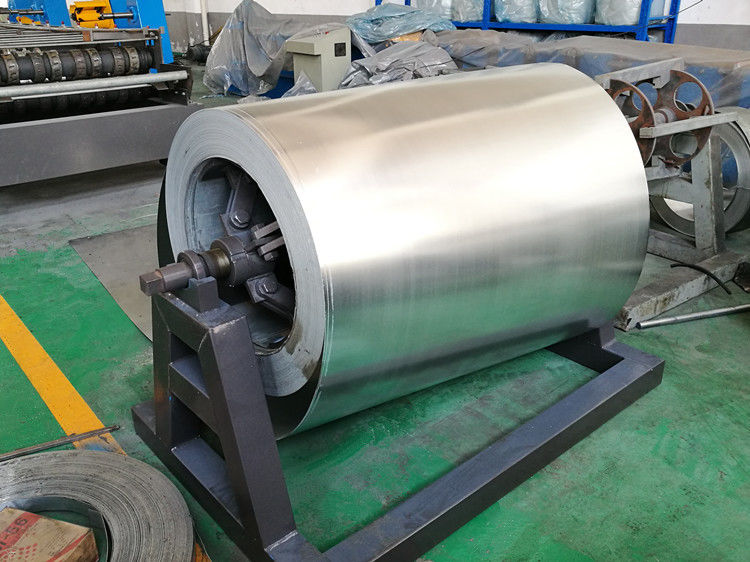

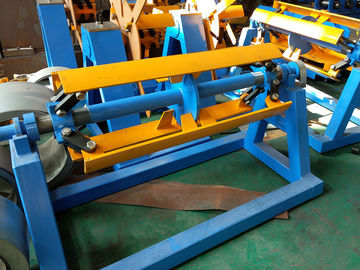

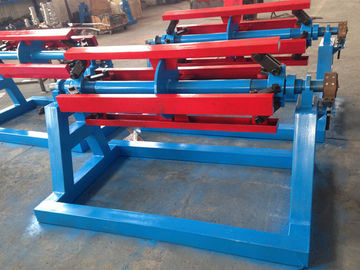

5Ton Manual Decoiler
Decoiler is a necessary part for a roll forming line to support coils. As usual, 5Ton decoiler is most widely used for a metal sheet roll forming line such as trapezoidal sheet roll forming machine, corrugated sheet roll forming machine and steel decking sheet roll forming machine, etc.
Manual decoiler is an economical design for clients and it works well as a hydraulic one. The price of a 5Ton manual decoiler is about USD 750 while a 5Ton hydraulic decoiler may cost USD 8,000. As usual, we equip a 5Ton manual decoiler as a standard component for clients if they do not require for a hydraulic one.
We Do Not suggest Manual Decoiler In Below Condition:
1. Material thickness is less than 0.2mm
2. For high machine speed
| 1. | Type: Manual adjust the mandrel for expansion and tension; unpowered decoiling |
| 2. | Expansion Range: 480-520mm |
| 3. | Max Coil O.D: 1350mm |
| 4. | Max Loading Capacity: 5000KG |
