Heavy Duty Upright Roll Forming Machine , Warehouse Storage System Rack Rolling Machine

Heavy Duty Upright Roll Forming Machine , Warehouse Storage System Rack Rolling Machine

    • Heavy Duty Upright Roll Forming Machine , Warehouse Storage System Rack Rolling Machine
    • Heavy Duty Upright Roll Forming Machine , Warehouse Storage System Rack Rolling Machine
    • Heavy Duty Upright Roll Forming Machine , Warehouse Storage System Rack Rolling Machine
  • Heavy Duty Upright Roll Forming Machine , Warehouse Storage System Rack Rolling Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Machine nude packing inside of the container with steel wire fastened
    Delivery Time: 60-90 days
    Payment Terms: T/T, L/C
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Control System: PLC Control System Drive Motion: Chain Drive
    Cut Motion: Hydraulic Cutoff Punching: Pre-punching With High Precision Power Press
    Warranty: 24 Months For Normal Use Technical Support: Engineer Is Available To Serve Machine At Clients' Factory
    High Light:

    rack rolling machine

    ,

    cold roll forming machine

    Heavy Duty Upright Rack Roll Forming Machine For Warehouse Storage System



      Description

    Upright rack roll forming machine is available to produce 1.5mm to 2.5mm thick upright racks with variable dimensions. This machine is an economica design by manually adjust the spacers beween rollers for producing each dimension. Believe Industry Company also have advance machine design with automatic adjust.

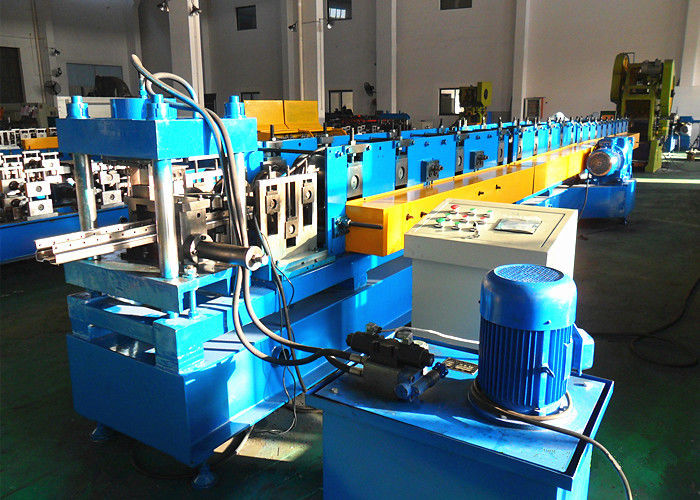

    This rack rollforming line mainly consists of 5Ton hydraulic uncoiler, 9-roller levelling unit, high speed power press, upright rack rollformer, hydraulic cutoff, run out table, electric system and hydraulic system, etc.



    Heavy Duty Upright Roll Forming Machine , Warehouse Storage System Rack Rolling Machine



    Work Porcess: uncoiling/unwinding---material levelling---punching---roll forming---cutting---final product





      Main Technical Parameters

    No.  Item  Specification
    1.  Raw Material  Carbon Steel, Galvanized Steel, mild steel
    2.  Material Thickness  1.5mm, 2.0mm, 2.5mm
    3.  Material Width  Depend on rack profiles and dimensions
    4.  Forming Station  18 stations according to rack profiles
    5.  Forming Speed  12-15m/min
    6.  Main Power  18.5kw
    7.  Drive  chain drive
    8.  Control System  PLC contrl system
    9.  Cutting Type  Hydraulic cutting, rest of the line stop running when cutting

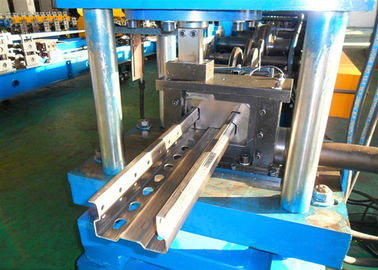

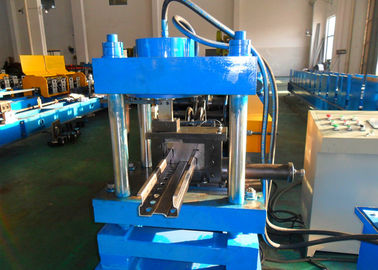

    10.  Hydraulic Power  5.5kw
    11.  Shaft Material  40Cr undergo heat treatment and Chromed plated
    12.  Roller Material  GCr15 Over quenching HRC 58-62°, with 0.05mm thick Chrome





      Upright Rack Profile

    Heavy Duty Upright Roll Forming Machine , Warehouse Storage System Rack Rolling Machine
