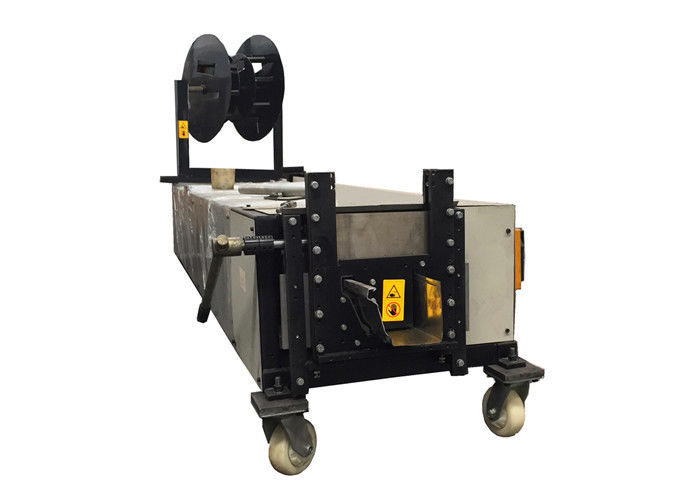

Portable Gutter Roll Forming Machine Hand Operate Cutting Type CE Approval

K5 K6 Gutter Roll Forming Machine, Portable Gutter Roll Former

Description

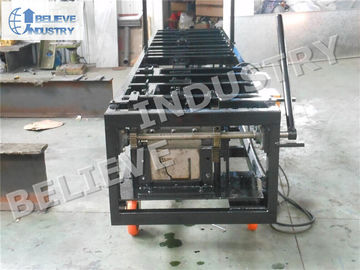

Portable roll forming machine is used for producing K5 or K6 gutters as per customers' requirements. Main components of this portable rollforming machine are coil support rack, roll forming stations, cutting device, transmission system, cutting device and simple electric control system.

No.	Machine Model	K5 & K6 Gutter Profile
1.	Portable Rollformer For K5 Gutter
2.	Portable Rollformer For K6 Gutter
3.	Portable Rollformer For K5 & K6 Gutter
4.	Portable Rollformer For Custom Profile

Standard Features

• Light weight and can be easily transported to work onsite.
• Urethane top and bottom drive rollers for smooth even, non-twisting drive
• Electrically drive via chain and sprocket.
• Manually load the coil and adjust coil tension and loosing.
• Simple electric control system with press buttons operation type.

Main Specification -- Material Information / Machine Specification / Technical Specification

Material Information

• Material Can Be Roll Formed: cold rolled steel, galvanized steel, aluminum
• Material Thickness: 0.5-0.8mm (0.5-0.6mm for cold rolled steel and gi coils; 0.8mm for aluminum)
• Material Width: 300-400mm depend on customers' gutter profiles
• Material Strength: 235-345Mpa soft steel

Machine Specification

• Machine Dimension: 3000mm x 600mm x 500mm (Length x Width x Height)
• Machine Weight: approx. 400kgs to 600kgs
• Machine Structure: steel tube welded frame as main machine structure

Technical Specifications

• Roller Stations: 11 stations
• Roll Forming Speed: 0-10m/min not including cutting
• Machine Speed: 0-6m/min including cutting
• Main Power For Roll Forming: AC 2.2KW
• Shaft Material: 40Cr with 50mm in diameter
• Roller Material: No. 45 steel with heat treatment and chromed
• Cutting Blade: Cr12 Mov, HRC58-62
