Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine

Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine

    • Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine
    • Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine
  • Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine

    Product Details:

    Place of Origin: Wuxi, China
    Brand Name: Beli
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Contact Us For Best Price
    Packaging Details: Main machine part is naked packing with high tensile iron wire fixed in the container, electric and hydraulic parts are covered with plastic film.
    Delivery Time: 45 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    Condition: New Machine Warranty: 2 Years
    After-sales Service: Engineers Available To Serve Machine Overseas
    High Light:

    gutter making machine

    ,

    gutter rolling machine

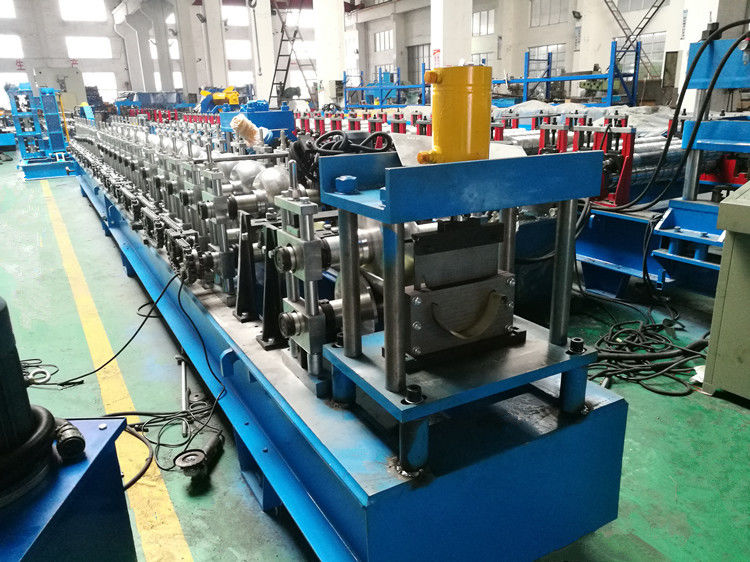

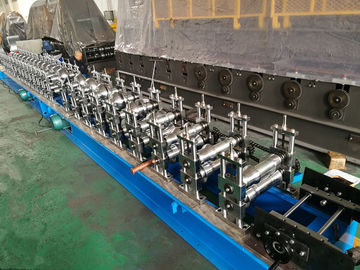

    Hydraulic Cutting 7.5KW Half Round Gutter Roll Forming Machine Line



    This gutter roll forming machine is used to produce half round gutters with the raw material of galvanized steel, aluminium and copper. Main process of the whole line is decoiling, guiding, roll forming and cutting.

    Main Components Of Half Round Gutter Machine

    a. 3Ton Manual Decoiler..................................................... 1 unit
    b. Feeding Guide................................................................ 1 unit
    c. Roll Forming Stations...................................................... 1 unit
    d. Hydraulic Cutting Device................................................. 1 unit
    e. Product Support Tables.................................................. 2 units
    f. Electric Control System................................................... 1 unit
    g. Hydraulic Station............................................................. 1 unit



    Main Technical Parameters

    1. Applicable Material: Galvanized steel coils, aluminium, copper
    2. Material Thickness: 0.4-0.8mm
    3. Main Motor Power: 7.5kw
    4. Forming Stations: 24 stations
    5. Forming Speed: 0-15m/min
    6. Control System: PLC control system
    7. Roller Material: 45# steel with heat treatment and chrome plated with 0.05mm thick
    8. Cutting power: 4kw
    9. Material of Cutting Blade: Cr12Mov



    Packing And Delivery

    a. Main machine part is nude paking with high tensile iron wire fixed it in the container.

    b. Hydraulic and electrical parts are wrapped with plastic film.

    c. Protective mesh cover are wrapped with plastic film.

    Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine   Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine


    Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine   Hydraulic Cutting Gutter Roll Forming Machine , 7.5KW Half Round Gutter Machine



    If you have any questions or need more machine details, please feel free to contact us.
