Home ProductsHighway Guardrail Roll Forming Machines

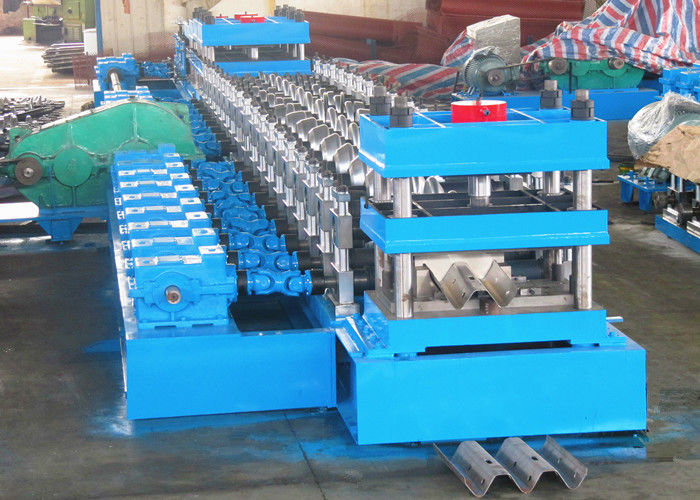

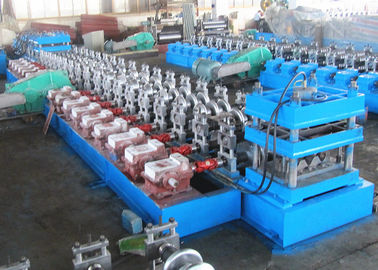

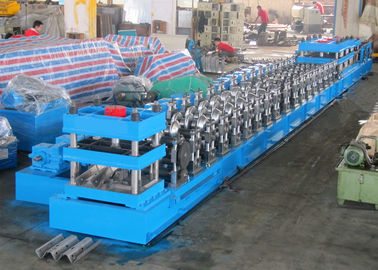

Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage

Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage

    • Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage
    • Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage
    • Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage
  • Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage

    Product Details:

    Place of Origin: CHINA
    Brand Name: Believe Industry Company
    Certification: CE
    Model Number: W Beam And Thrie Beam Machine

    Payment & Shipping Terms:

    Packaging Details: Nude Packing
    Delivery Time: 60 to 90 days
    Payment Terms: 30% TT in advance, 70% TT before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Other Name: W Beam And Thrie Beam Guardrail Change Over Roll Forming Machine Material: 235Mpa Galvanized Steel Coils
    Thickness: 2.5-3.5mm Drive: Gear Box Drive
    Power Supply: 380V, 50Hz, 3Ph Machine Warranty: 24 Months
    High Light:

    highway guardrail forming machine

    ,

    guardrail forming machine

    Highway Guardrail Cold Rollformer Line For W Beam And Thrie Beam Panels



      Brief Introduction

    This roll forming machine can produce both w beam profile guardrails and thrie beam profile guardrails. Users only need to adjust the last three rollers which are assembled as a cassette and the cutting blade to change the roll forming of W beam profile to Thrie Beam Profile.



    Machine Advantages

    • Meet Clients' Demand: one machine can produce 2 profiles of guardrails
    • Save Machine Cost: roll forming of 2 profiles share the same leveling, punching, roll forming unit and control system
    • Save Floor Area: a better choice for clients with limited factory area



      Whole Line Components And Workflow

    >   5Ton Hydraulic Decoiler--hydraulic expansion and tension, electric decoiling
    >   7-Roll Material Leveling Device--up 3 rolls, and bottom 4 rolls, 7.5kw for leveling
    >   Hydraulic Punch Press--2 sets of punching molds
    >   Roll Forming Mill--gear box drive, 18 forming steps, 22kw
    >   Hydraulic Cutting Device--15kw stop cutting
    >   Final Product Run Out Table--non powered, 2 pieces
    >   Electric Control System--Panasonic brand PLC
    >   Hydraulic Station--2 units, 1 for decoiling, 1 for punching and cutting

    Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage
    *   Work Direction: left-->right
    *   Work Flow: decoiling-->leveling-->punching-->roll forming-->cutting-->run out





      Main Machine Technical Parameters

     >> 5Ton Hydraulic Decoiling



     1. Decoiling Type: hydraulic mandel expansion and tension, electric decoiling
     2. Decoiler Mandrel Expansion And Tension: hydraulic power offered by 4kw motor
     3. Decoiler Mandrel Expansion Range: φ480-520mm
     4. Decoiling Power: 3kw
     5. Max Coil O.D: 1350mm
     6. Capacity: 5Ton



     >> Punching Device



     1. Punching Molds: 2 sets
     2. Hydraulic Power: 15kw
     3. Punching Mold Material: Cr12Mov, HRC58-62



     >> Roll Forming



     1. Material: galvanized steel coils, 235Mpa
     2. Material Thickness: 2.5-3.5mm
     3. Forming Steps: 18 steps
     4. Main Motor: 22kw
     5. Forming Speed: 0-15m/min
     6. Shaft Material: 40Cr, φ100mm
     7. Roller Material: No.45 steel, fine machining, quenching and tempering, surface with chrome plated



     >> Cutting



    1. Type: hydraulic cutting, machine stops when cutting
    2. Cutting Blade Material: Cr12Mov, HRC58-62
    3. Cutting To Length Tolerance: ±1.5mm







      Guardrail Panel Profile And End Product

    Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage

    Efficient Highway Guardrail Roll Forming Machine W Beam / Thrie Beam Panels Usage



    Believe Industry Company Advantages

    • 20+ Years Experience in metal forming industry
    • Professional team with machine designing, manufacturing, marketing and after-sale service
    • COPRA, SOLIDWORKS, AUTOCAD assist in machine designing and analysing
    • Strict control on material processing, machine assembling and testing
    • 50+ countries and regions our engineers have been to test machine



    If you need more information on crash barrier rollformer, please contact us!
