Application: | For Producing Heavy Duty Upright Racks | Width Adjust: | Automatic Adjust |
---|---|---|---|
Drive Motion: | Gear Box Drive | Cutting Type: | Flying Cutoff |
Main Forming Power: | 30kw | Servo Motor: | 2.2kw |
High Light: | rack rolling machine,cold roll forming machine |
Cassette Type Upright Rack Cold Rollforming Equipment With Servo Flying Cutoff
Description
This machine is used to produce heavy duty upright racks for warehouse racking and shelving system. Main material can be roll formed are 1.5-2.5mm thick galvanized steel coils and cold rolled steel coils.
Machine Advantages
Adopted cassette type roller stations, this machine can be easily changed for producing another profile. 4 roller staions or 6 roller stations are screwed on a common base as a cassette, users only need to lift the cassette instead of disassembling each roller station when changing to another profile production.
Whole line speed can reach up to 15m to 20m/min with a servo flying cutoff. Common cutting device is stop to cut device when means other parts of the machine stop working when cutting. If clients have the demand of high output of the production, we suggest a servo flying cutoff or a pneumatic flying cutoff.
Main Components Of Whole Upright Rack Production Line
No. | Main Parts | Quantity | |
1. | 3Ton Hydraulic Decoiler | 1 set | |
2. | 9-Roller Leveller | 1 set | |
3. |
Upright Rack Rollformer |
Entry Feeding Guide |
2 sets for different profiles (rafted type) |
Roll Forming Stations | |||
Turkey Straightener | |||
4. | Servo Flying Cutoff | 1 set | |
5. | Output Table | 2 sets | |
6. | Electric Control Cabinet | 1 set | |
7. | Hydraulic Station | 2 sets |
Main Technical Parameters
1. Formed material: 1.5mm, 2.0mm, 2.5mm thick galvanized steel coils, cold rolled steel coils
2. Formed upright profiles: 2 profiles depend on clients' drawing
3. Whole line speed: 15-20m/min
4. Roller stations: 22 stations
5. Main forming power: 30kw
6. Drive motion: gear box drive
7. Cutting type: servo flying cutoff; hydraulic blade cutting device
8. Servo motor power: 2.2kw
9. Power for cutting: 7.5kw
10. Control system: Panasonic PLC control system (Siemens PLC is optional)
Upright Rack Profiles For Reference

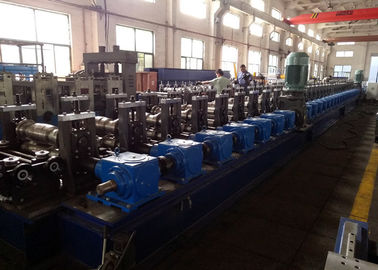

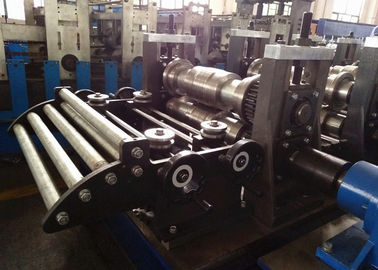

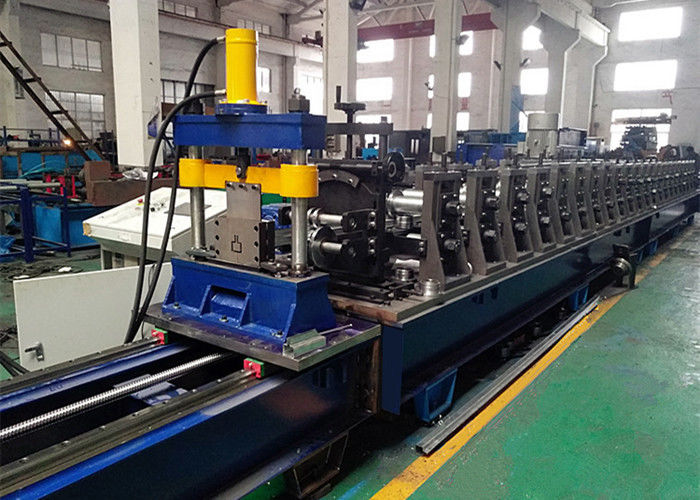

More Machine Pictures

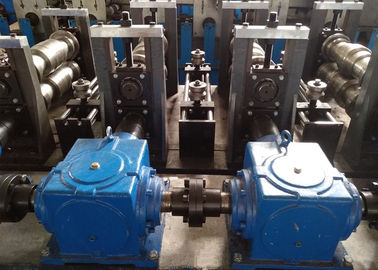

Roller Station Structure--Cassette Type Roller Stations/Rafted Type
