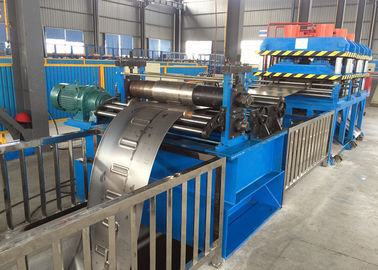

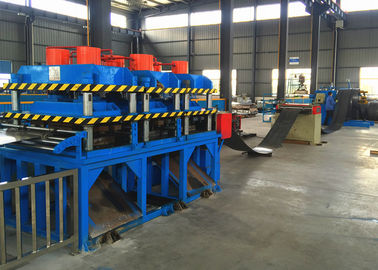

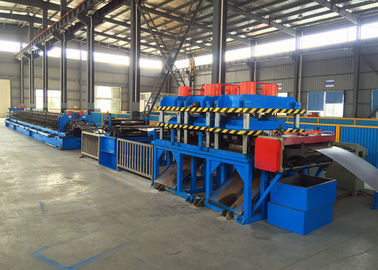

Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use

Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use

    • Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use
    • Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use
    • Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use
    • Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use
  • Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Price: Contact Us For Best Price
    Packaging Details: Machine machine nude packing, electric and hydraulic system covered with plastic film
    Delivery Time: 90 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    Other Name: Galvanized Steel Cable Tray Roll Forming Machine For Solid Bottom And Ladder Type Application: Can Produce Both Solid Bottom Cable Trays And Ladder Cable Trays
    Machine Features: Roller Stations Can Automatically Move In And Out Drive Motion: Chain Drive
    Material Can Be Roll Formed: Hot Dip Galvanized Steel Coils, Stainless Steel, Etc Machine Speed: 10-15m/min
    High Light:

    cable tray manufacturing machine

    ,

    cable tray forming machine

    Solid Bottom and Ladder Type Cable Tray Production Line With Automatic Adjust



      Description

    This cable tray roll forming machine can be used to produce both perforated ladder cable trays and solid bottom cable trays with different bottom widths. Applicable materials are pre-galvanized steel coils, hot dip galvanized steel coils and stainless steel coils. Main process is decoiling, leveling, punching, roll forming and cutting.



    Machine Features

    • This machine can produce perforated cable trays and solid cable trays with adjustable bottom width.
    • One side of the roller stands is fixed on the machine bed, and the other side of the machine bed as a whole can move horizontally through CNC linear guider.
    • Seperated leveling device and punching device are designed for high machine speed.
    • Cast iron roller stands and gear box transmission make the machine run stable at a fast speed with less noise.



      Main Components Of Ladder Cable Tray Rollforming Line

    No.  Main Parts Quantity
    1.  5Ton Hydraulic Decoiler 1 set
    2.  9-roller Leveling Device 1 set
    3.  Servo Feeding Device And Punching Device 1 set
    4.  Cable Tray Roll Forming Machine 1 set
    5.  Hydraulic Cutting Device 1 set
    6.  Product Output Tables 2 sets
    7.  Electric Control System (individual electric control system for punching and roll forming) 2 sets
    8.  Hydraulic System (individual hydraulic system for punching and cutting) 2 sets





      Machine Technical Parameters

    1. Material: galvanized steel coils, cold rolled steel coils

    2. Material thickness: 1.6 to 3.0mm

    3. Main motor power: 15kw * 2

    4. Forming speed: 15m/min

    5. Roller station: 27 stations

    6. Control system: PLC control system

    7. Shaft material: 80mm

    8. Roller material: GCR15

    9. Cutting blade materia: Cr12Mov



      More Pictures Of Ladder Cable Tray Machine

    Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use

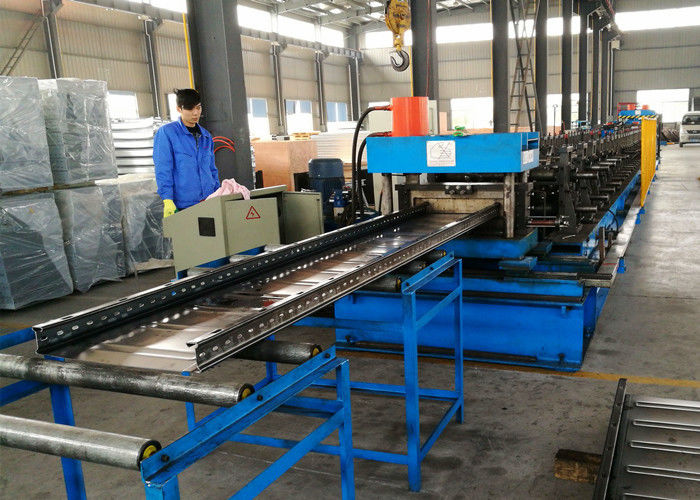

    Perforated Ladder Cable Tray

    Automatic Adjust Roll Forming Equipment Solid Bottom & Ladder Type Cable Tray Use

    Solid Bottom Cable Tray
