High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff

High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff

    • High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff
    • High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff
    • High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff
    • High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff
  • High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Main machine is nude packing, electric and hydraulic system covered with plastic film
    Delivery Time: 55 to 60 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    Other Name: Ladder Cable Tray Production Line Machine Feature: High Speed Fully Automatic Production Line
    Line Speed: 20-30m/min Cutting Type: Servo Tracking Flying And Hydraulic Cutting
    Drive Motion: Gear Box Drive Stacking System: Automatic Stacker
    High Light:

    cable tray manufacturing machine

    ,

    cable tray making machine

    High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff



      Brief Description

    This cable tray roll forming machine line is used to produce C-shaped channel cable trays with solid bottom for supporting electrical cables. Whole production line works continuously with high-volume production. It combines of punching, cold roll forming, cutting and electric controlling technology together.



    • Can produce channel cable trays with adjustable bottom width.
    • High speed machine design equipping with separated leveller, punching unit and servo flying cutoff.
    • Speed of whole roll forming line can reach up to 30m/min.
    • Fully automatic machine with PLC control system.
    • Low labour force with easy operation.
    • Long life with gear box transmission.
    • High precision of punching with servo feeder.
    • High degree of cutting length accuracy.

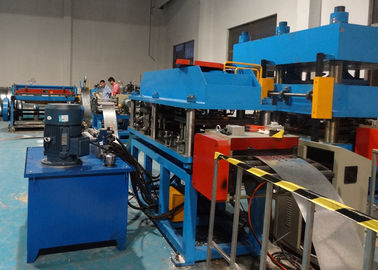

      Main Components Of High Speed Cable Tray Production Line



    High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff



    No.  Main Parts  Quantity
    1.  3Ton Hydraulic Uncoiler / Decoiler -- Single Arm Decoiler 1 unit
    2.  9-Roller Levelling Device 1 unit
    3.  Punching Unit 1 unit
    4.  Roll Forming Machine -- With Gear Box Transmission 1 unit
    5.  Servo Flying Cutoff 1 unit
    6.  Automatic Stacker 1 unit
    7.  Electrol Control System 1 unit
    8.  Hydraulic System 1 unit





      Most Important Technical Parameters

    1. Material: galvanized steel coils, cold rolled steel coils

    2. Material thickness: 1.0 to 2.5mm

    3. Main motor power: 15kw

    4. Whole line speed: 20-30m/min

    5. Roller station: 20 stations according to clients' profile

    6. Control system: PLC control system

    7. Shaft material: 40Cr soild shafts with diameter of 80mm

    8. Roller material: GCR15 with heat treatment and chrome plated

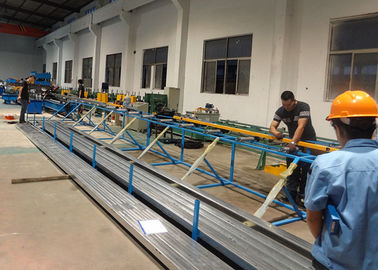

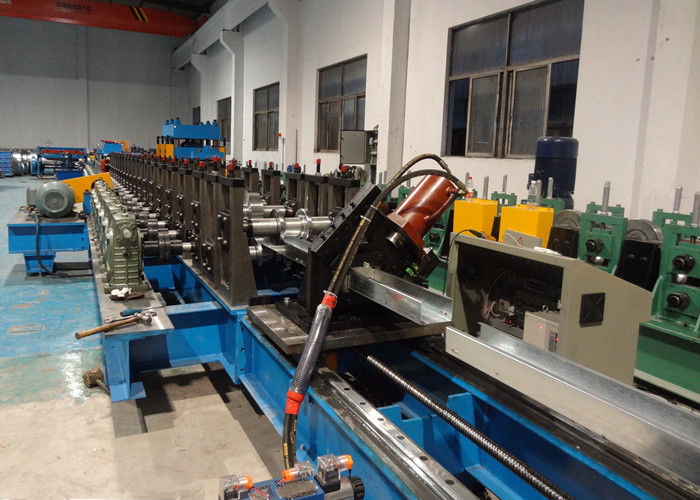

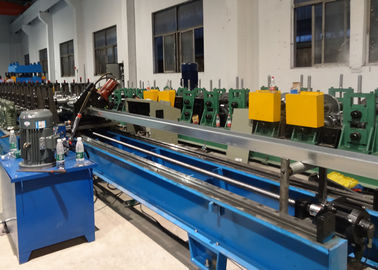

    More Pictures For Reference

    High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff

    High Speed Channel Cable Tray Roll Forming Machine Line With Servo Flying Cutoff
