100-600mm Width Supermarket Shelf Panel Roll Forming Machine

100-600mm Width Supermarket Shelf Panel Roll Forming Machine

    • 100-600mm Width Supermarket Shelf Panel Roll Forming Machine
    • 100-600mm Width Supermarket Shelf Panel Roll Forming Machine
    • 100-600mm Width Supermarket Shelf Panel Roll Forming Machine
    • 100-600mm Width Supermarket Shelf Panel Roll Forming Machine
    • 100-600mm Width Supermarket Shelf Panel Roll Forming Machine
    • 100-600mm Width Supermarket Shelf Panel Roll Forming Machine
  • 100-600mm Width Supermarket Shelf Panel Roll Forming Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY COMPANY
    Certification: CE
    Model Number: BELI-SHELF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: According to customers' requirement
    Packaging Details: Main machine part is fastened insided of the container bu steel wire, electric and hydraulic parts are wrapped with plastic film
    Delivery Time: 60 to 75 days
    Payment Terms: 30% TT in advance; 70% TT before shipment
    Supply Ability: 45 sets per quarter
    Contact Now
    Detailed Product Description
    Application: Used For Producing Shelf Panels Machine Speed: 8-10m/min
    Control System: PLC Control System Shelf Width Adjust: Automatic Adjudtment
    Applicable Material Thickness: 0.6-1.2mm Cutting And Bending: Hydraulically Powered Cutting And Bending



    100-600mm Width Supermarket Shelf Panel Roll Forming Machine



    Believe Industry Company has full range of metal roll forming machines for warehouse and supermarket storage system. This shelf panel production line is designed and made for producing shelf panels with the widths ranging from 100mm to 600mm.

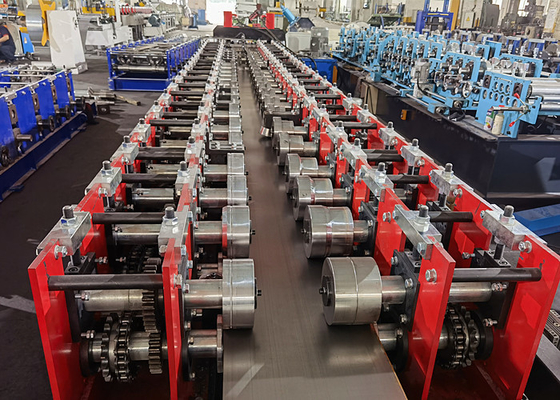

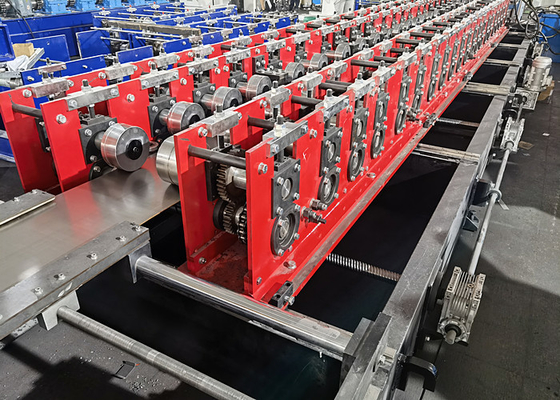

    Main components of this shelf panel machine are decoiler, leveller, punching unit, roll forming unit, cutting & bending unit, run out table, control system and hydraulic system, etc. The rollers can move electrically for different shelf panel widths.



    100-600mm Width Supermarket Shelf Panel Roll Forming Machine

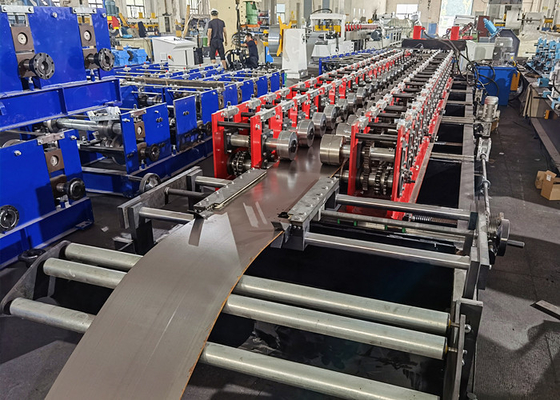

    Whole line work flow: coil unwinding - levelling - punching notches & holes - feeding & guiding - roll forming - cutting & end folding - shelf panel



    Main Technical Parameters

    1. Material can be roll formed: cold rolled steel coils, galvanized steel coils

    2. Material thickness: 0.6-1.2mm

    3. Decoiler: 5T hydraulic decoiler

    4. Levelling unit: 7 roller leveller, top 3 rollers & bottom 4 rollers

    5. Material of levelling rollers: 40Cr, Chromed

    6. Levelling power: 5.5kw

    7. Punching power: 11kw

    8. Material of punching molds: Cr12, HRC58-62

    9. Power for servo feeder: 3kw

    10. Roll forming steps: 14 steps

    11. Material of rollers: GCr15, HRC58-62, Chromed

    12. Material od shafts: 40Cr solid shafts, 70mm in diameter, chromed

    13. Power for roll forming: 11kw

    14. Transmission: electric chain transmission

    15. Machine speed: 0-10m/min

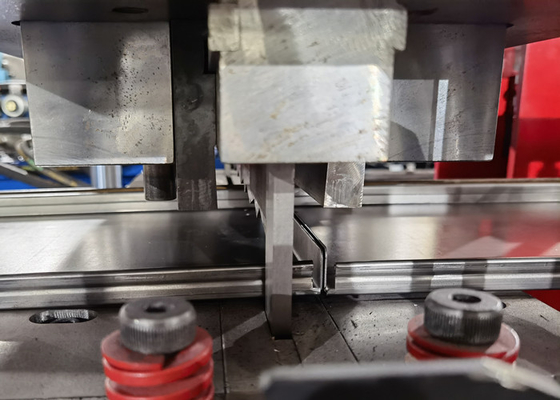

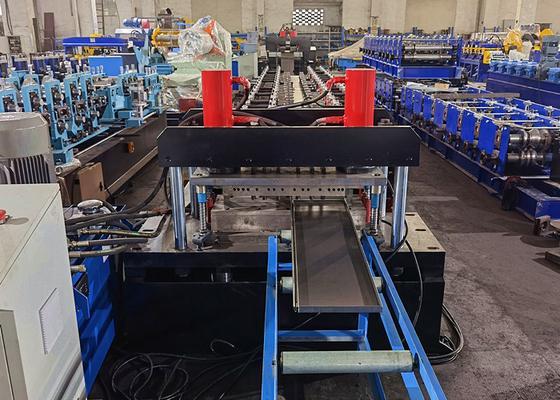

    16. Cutting & bending: hydraulic powered cutting, then end bending

    17. Hydraulic power for cutting & bending: 11kw

    18. Cutting length tolerance: +/-0.5mm



    All raw material such as H beam steel, steel bar, ect are all selected from famous steel mill, all the electric components are from famous brands such as Siemens, Panasonic, Yaskawa, etc. Machine parts such as bearings, motors, etc that customer designated will also be taken into consideration and accept.

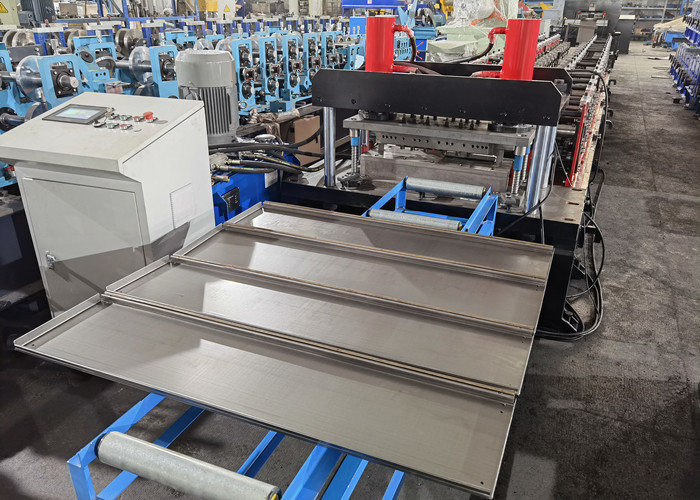

    Final Products For Reference

    100-600mm Width Supermarket Shelf Panel Roll Forming Machine



    If you need more machine details, please contact us.
