| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY COMPANY |
| Certification: | ISO; CE |
| Model Number: | BELI-CT600 |
| Packaging Details: | Nude packing with steel wire fastened inside of the container |
|---|---|
| Delivery Time: | 60 - 75 days |
| Payment Terms: | 30% TT in advance, 70% TT after check and acceptance before shipping |
| Supply Ability: | 45 sets per quarter |
| Machine Name: | Cantilever Mill Stands Type Cable Tray Production Line | Cable Tray Web Width: | 100mm To 600mm |
|---|---|---|---|
| Cable Tray Height: | 35mm To 100mm | Drive System: | Chain Drive; Both Top And Bottom Shafts Are Driven Shafts |
| Control System: | PLC Control System | Cutting System: | Hydraulic Cutting System; Post Cutting |

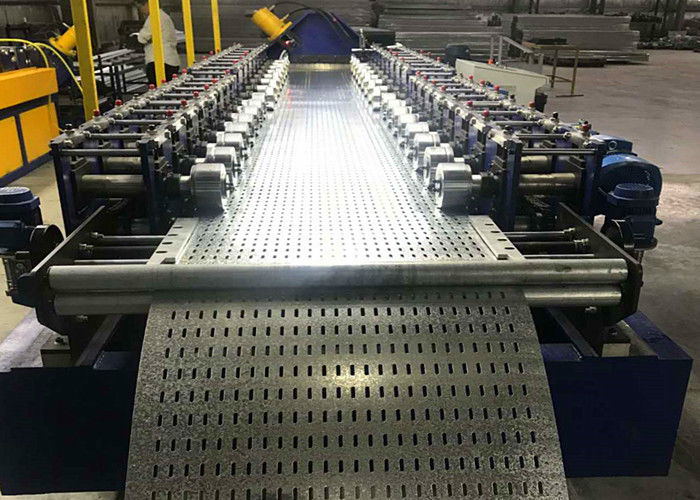

Perforated Cable Tray Making Machine With Adjustable Cantilever Mill Stands
Description
Cable trays are used o support insulated electrical cables for power distribution and communication. Believe Industry Company manufactures rollformers for producing various cable trays. This cable tray production line is designed and manufactured for producing cable trays with 100mm, 150mm, 300, 450mm and 600mm width. Raw material can be rollformed are 0.6mm-1.2mm thick galvanized steel coils.
Main Machine Components Of Whole Line
| No. | M/C | QTY | Optional |
| 1. | 5Ton Single Madrel Decoiler | 1 set | Manual decoiler / Hydraulic decoiler |
| 2. | Levelling Unit | 1 set | |

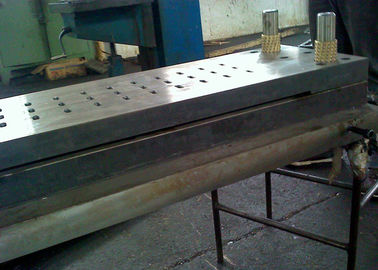

| 3. | Punching Unit With Servo Feeder | 1 set | Hydraulic punching unit / Punching press |
| 4. | Roll Forming Unit | 1 set | |

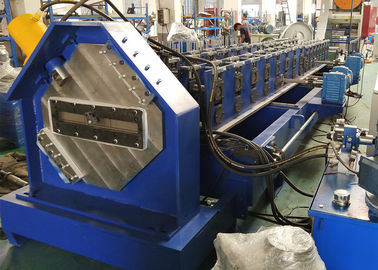

| 5. | Hydraulic Cutting Unit | 1 set | Pre cut operation is also available |
| 6. | Receiving Tables | 2 pcs | Unpowered table / Auto stacker |
| 7. | Electric Control System | 1 set | |
| 8. | Hydraulic System | 1 set |
Whole line work process: coils unwinding --> material levelling --> servo feeding --> punching according to patterns requested --> roll forming to required profile --> cutting to length --> end product
Machine Features
-- Can manufacture cable tray widths range from 100mm to 600mm.
-- Automatically width adjustment within several minutes.
-- Adopt cantilever type machine structure and both sides of the rollers can be adjusted and controlled by PLC.
-- Both top shafts and bottom shafts are driven shafts, with added friction, provide a better strip "pull" from the uncoiler and more even speed.
Cable Trays With Various Patterns And Holes
