Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified

Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified

    • Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified
    • Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified
    • Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified
    • Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified
  • Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Packaging Details: Standard Seaworthy Packing
    Delivery Time: 50-60 days
    Payment Terms: 30% TT as machine deposit, 70% TT paid after machine check and accept before shipment
    Supply Ability: 50 sets per quarter
    Contact Now
    Detailed Product Description
    Machine Name: Light Duty Strut Channel Cold Rollformer For Slotted Profile Function: For Producing Both 41mm Plain And Slotted Strut Channels
    Machine Structure: H Beam Steel Welded Base With Guide-pole Type Roller Stands Coil Material: Pre-galvanised Coils, Hot Dip Galvanised Coils
    Material Thickness: 1.5-2.5mm Galvanised Steel Drive: Gear Box Drive
    High Light:

    metal roll forming machine

    ,

    roll forming equipment

    1.5-2.5mm Thick GI Strut Channels Roll Forming Line For Slotted Profile



    Description

    GI strut channels work as the support frames for solor panels. Most widely used dimensions of strut channels are 41mm by 41mm and 21mm by 21mm. This machine is made to produce 41mm strut channels with 1.5mm to 2.5mm thick galvanized steel coils.



    Working Flow

    Steel coil unwinding--->feeding and guiding--->levelling--->punching--->roll forming--->cutting--->final products

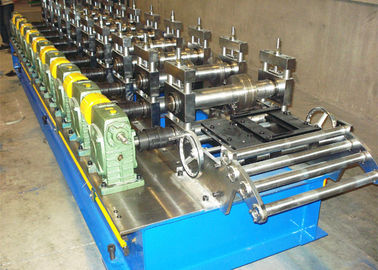

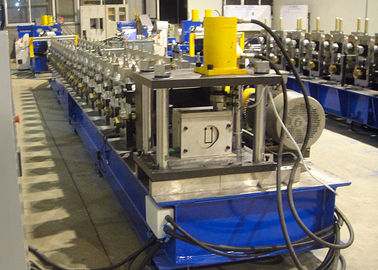

    Components Of GI Strut Channel Production Line

    • 3Ton Automatic Uncoiler
    • 7-Roller Leveller

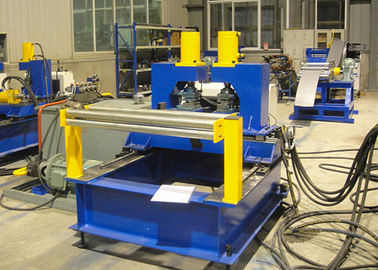

    • Hydraulic Punching Unit
    • Strut Channel Roll Forming Unit

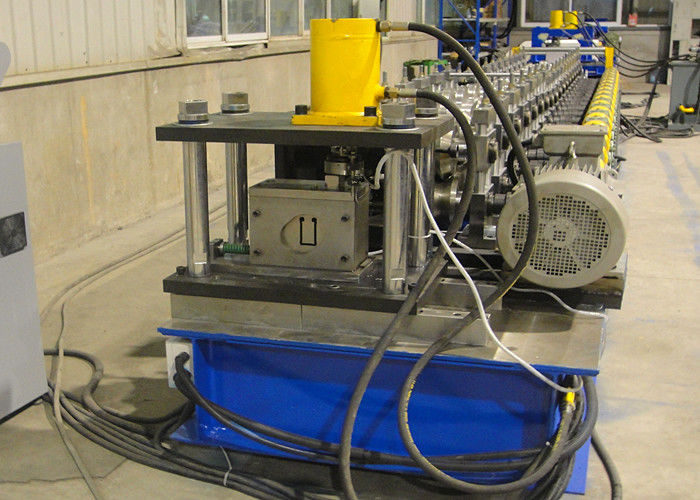

    • Hydraulic Cutting Device
    • Receiving Tables
    • Electric Control System
    • Hydraulic System



    Machine Features

    • Automatic decoiler, easy for coil tension and unwinding
    • Equip with 7-roller leveller for good flatness of the material
    • Hydraulic punching unit, an economical solution for punching holes and slots with the speed of 3-5m/min
    • Electrically drive via gear box, machine runs stable and enjoys long lifetime
    • Exact accuracy of cutting length with low burr cutting



    Main Specifications

    No.  Item  Specifications
    1.  C Strut Profile  41*21, 41*41, 41*52, 41*72
    2.  Size Adjust  manual adjust the rollers and spacers
    3.  Roller Stations  18 roller stations / forming steps
    4.  Main Power  11kw
    5.  Forming Speed  12-15m/min
    6.  Hydraulic Power  7.5kw
    7.  Cutting Length Tolerance  ±2mm for 6m, ±3mm for 10m



    41mm Solar Strut Channel Profiles

    Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified



    Solar Strut End Product And Application

    Solar Post Galvanized Strut Roll Forming Machine Slotted Profile Use CE Certified
