| Place of Origin: | CHINA |
| Brand Name: | BELIEVE INDUSTRY |
| Certification: | CE |
| Model Number: | BELI SERIES |
| Packaging Details: | Standard seaworthy packing |
|---|---|
| Delivery Time: | 60 to 90 days |
| Payment Terms: | 30% TT in advance, 70% TT before delivery |
| Other Name: | Perforated Ladder Cable Tray Production Line | Usage: | For Producing Ladder Type Cable Trays |
|---|---|---|---|
| Machine Feature: | Automatic Adjust For Produce Each Dimension | Advantages: | Improved Necking Die For Ends Easy Joint |
| Power Supply: | 380V, 50Hz, 3 Ph | Warranty: | 24 Months |
| High Light: | cable tray manufacturing machine,cable tray making machine |
||

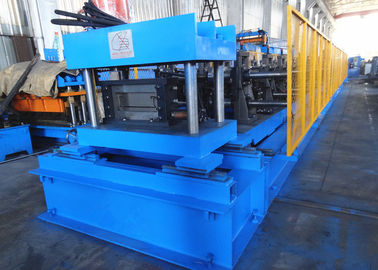

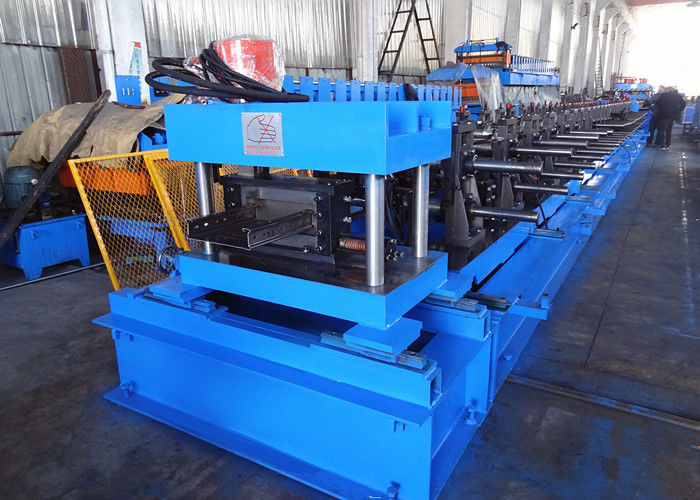

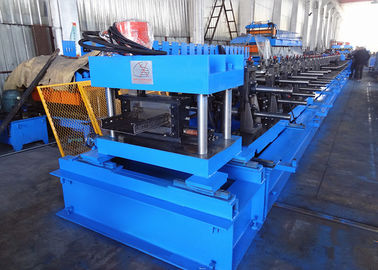

Ladder Cable Tray Roll Forming Machine Line With Easy Joint Necking Ends
Brief Descriptions
This cable tray production line is used to produce cable trays with 0.6mm to 1.2mm galvanised steel coils and cold rolled steel coils. Whole line work process is steel coil loading, unwinding, levelling of material, punching holes and slots, roll forming and cutting to length.
Machine Features
Machine Components Of Whole Production Line
| No. | Main Components | Quantity | Options |
| 1. | 5T Hydraulic Uncoiler / Decoiler | 1 set | 8T Hydraulic Uncoiler ( With Coil Car ) |

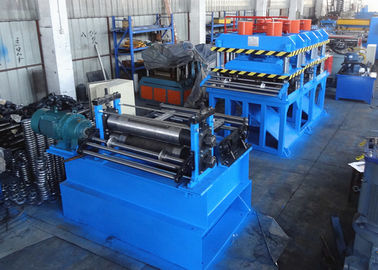

| 2. | Leveller | 1 set | |
| 3. | Hydraulic Punching Unit With Servo Feeder | 1 set | High Precision and High Speed Power Press |
| 4. | Embossing Unit | 1 set | |
| 5. | Entry Guide Of Roll Former | 1 set | |

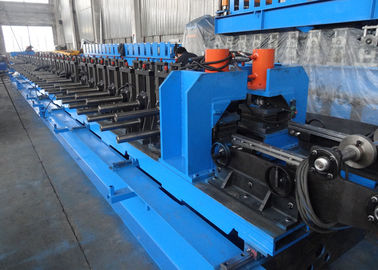

| 6. | Cable Tray Roll Former | 1 set | |
| 7. | Hydraulic Shear | 1 set | Servo Flying Cutoff |
| 8. | Unpowered Runout Table | 2 sets | Automatic Stacker |
| 9. | Electric Control System | 2 sets | Famous brands as request |
| 10. | Hydraulic System | 2 sets | Famous brands as request |
There are two sets control system and hydraulic system of the line. One set is for hydraulic punching holes and slots, another set is for controlling roll forming and cutting.
Most Essential Technical Parameters
1. Roller Stations: 27 stations depend on profile and material information
2. Main Forming Power: 11kw x 2
3. Forming Speed: 15m/min
4. Drive: electrically powered driven via 1.2" chain drive
5. Shaft Diameter: 70mm
6. Material of Shaft: 40Cr with treatment
7. Material of Rollers: GCr15 with 0.05mm thick Chrome plated
8. Power for Width Adjust: 2.2kw
9. Power for height Adjust: 1.5kw x 2
10. Cutting Power: 15kw
11. Material of Cutting Blade: SKD11
12. Material of Necking Dies: SKD11
13. Cutting Length Tolerance: ±3mm/10m
14. Angularity Accuracy: ±1.5°/10m
Final Products For Reference
Cable Trays With Necking Ends For Easy Joint
Perforated Cable Trays and Solid Bottom Cable Trays
