Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage

Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage

    • Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage
    • Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage
    • Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage
    • Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage
  • Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI SERIES

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 40000-45000 / set
    Packaging Details: Nude Packaging
    Delivery Time: 60-75 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 sets/ Month
    Contact Now
    Detailed Product Description
    Other Name: Galvanized Steel Upright Rack Rollforming Line With Flying Cutoff Raw Material: Galvanized Steel Coils, Cold Rolled Steel Coils
    Machine Feature: Continuous Production Line With Pneumatic Flying Cutting After-sales Service: Enigineers Available To Service Machinery Overseas
    Power Supply: 380V, 50Hz, 3Ph Machine Warranty: 24 Months
    High Light:

    cold roll forming machine

    ,

    standing seam roll forming machine

    Non-stop Cutting Pallet Racking Roll Forming Machine For 1.5-2.5mm Thickness



      Description

    Upright racks are an important part for storage system. This rack production line is fully automatic combining punching technology, cold roll forming technology and PLC control technology together. Users only need to input related production data on the touch panel, then machine will start to work accordingly.



    Machine Features

    • Can roll form galvanized steel coils with 1.5mm to 2.5mm thickness
    • 9-roller levelling device for good flatness of the material before punching and roll forming
    • Separated control system for hydraulic punching unit from rack roll forming and cutting unit
    • High precision and high speed of punching with servo feeder
    • Machine base and roller stands under go CNC gantry milling processing for high precision
    • Continuous upright rack production line with pneumatic tracking cutoff
    • High degree of automation and easy operation with PLC control system



      Components of Upright Rack Rollforming Line

    No.  Main Components Quantity  Options
    1.  3Ton Manual Decoiler 1 set

    3Ton Hydraulic Decoiler

    5Ton Hydraulic Decoiler

    Servo Tracking System

    High Speed Power Press

    2.  9-Roller Leveling Device 1 set
    3.  Hydraulic Punching Device + Servo Feeder 1 set
    4.  Main Racking Rollformer 1 set
    5.  Pneumatic Tracking Hydraulic Blade Cutoff 1 set
    6.  Run Out Support Table 2 sets
    7.  Control Cabinet 2 sets
    8.  Hydraulic System 1 set
    9.  Pneumatic System 1 set



    Machine Layout

    Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage





      Technical Parameters

    No.  Item  Parameters  Profile Drawing
    1.  Raw Material  Carbon Steel, Galvanized Steel

    Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage

    Storage Upright Rack

    90 * 70 * 50



    2.  Material Thickness  1.5-2.5mm
    3.  Material Width  Depend on specific profile
    4.  Roller Stations  18 stations
    5.  Forming Speed  15-20m/min
    6.  Line Speed  15-20m/min
    7.  Forming Power  15KW
    8.  Drive  Chain drive
    9.  Control System  PLC control System
    10.  Hydraulic Power  5.5kw
    11.  Material of Shaft  40Cr
    12.  Diameter of Shaft  76mm
    13.  Material of Rollers  GCr15, HRC 58-62°
    14.  Blade Material  Cr12 Mov

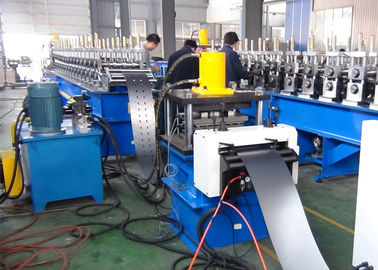

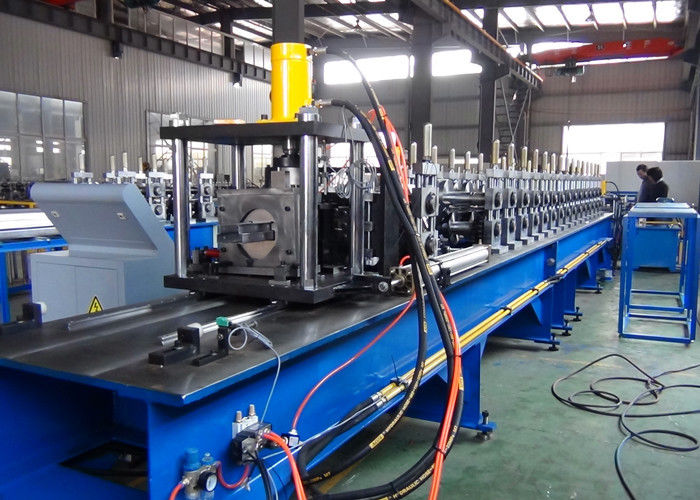

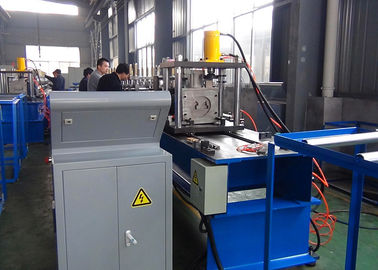

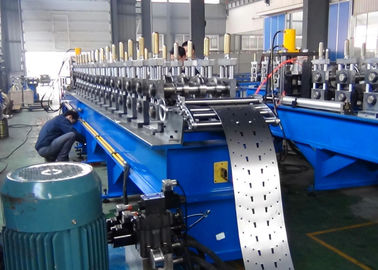

    Machine Pictures For Reference

    Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage

    Non - Stop Cutting Pallet Rack Roll Forming Machine 1.5 - 2.5mm Thickness Material Usage



    For more machine details, please contact us!
