Chain Driven IBR Metal Roof Roll Forming Machine PLC Controlled With Curving Unit

Chain Driven IBR Metal Roof Roll Forming Machine PLC Controlled With Curving Unit

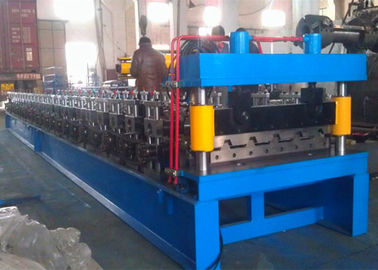

    • Chain Driven IBR Metal Roof Roll Forming Machine PLC Controlled With Curving Unit

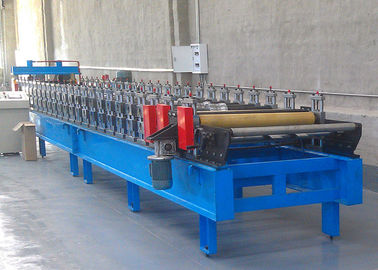

    • Chain Driven IBR Metal Roof Roll Forming Machine PLC Controlled With Curving Unit
    • Chain Driven IBR Metal Roof Roll Forming Machine PLC Controlled With Curving Unit
    • Chain Driven IBR Metal Roof Roll Forming Machine PLC Controlled With Curving Unit
  • Chain Driven IBR Metal Roof Roll Forming Machine PLC Controlled With Curving Unit

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY
    Certification: CE
    Model Number: BELI-686

    Payment & Shipping Terms:

    Price: USD 18000-25000 per set
    Packaging Details: Nude Packing (roller surface covered plastic film)
    Delivery Time: 50 to 60 days
    Payment Terms: 30% TT as deposit, 70% TT before machine delivery
    Supply Ability: 60 sets per month
    Contact Now
    Detailed Product Description
    After-sales Service: Engineers Available To Service Machinery Overseas Machine Warranty: 18 Months
    Control System: Panasonic PLC Control System Drive Motion: Chain Drive
    Material Thickness: 0.4-0.8mm
    High Light:

    metal roofing roll former

    ,

    profile roll forming machine

    Color Steel 686 IBR Roofing Sheets Roll Forming Machine With Curving Machine



    Description

    IBR roofing profile got its name from the abbreviation of “Inverted Box Rib” is widely used in SA. This machine is made to to produce ibr sheets with the cover width of 686mm. Using PLC control system, whole line is fully automatic with line speed of 12-15m/min.



    Believe Industry Company also have high speed machine design with line speed up to 30-40m/min including cutting for clients who need high-volume production.



    Work Flow: uncoiling-->feeding and guiding-->roll forming-->cutting-->end product-->Curving if needed



    Components Of IBR Roofing Rollforming Line

    • 5Ton Hydraulic Uncoiler
    • IBR Roofing Sheet Rollformer (electrically pre-cutting device + roller stations + hydraulic cutoff)
    • 6m Receiving Table
    • Curving Machine
    • Electric Control Cabinet
    • Hydraulic Station



    Machine Features

    • Controlled by Panasonic PLC control system
    • Can roll forming IBR roofing sheets according to clients' profile
    • With a hydraulic uncoiler, easy for fixing and unwinding the coils
    • Equipped with an electric pre-cutting device, easily to cut unsmooth coil before roll forming
    • Electrically driven via chain and sprocket



    Most Essential Machine Parameters

    No.  Item  Technical Parameters
    1.  Applicable Material  Color steel coils, galvanized steel coils
    2.  Material Thickness  0.4-0.8mm
    3.  Material Strength  235-345Mpa
    4.  Material Width  Depend on specific profile
    5.  Diameter of Shaft  76mm, solid shaft
    6.  Material of Shaft  40Cr, go under heat treatment and with chrome plated
    7.  Material of Rollers  ASTM1045 with heat treatment and chromed
    8.  Main Power  7.5KW
    9.  Forming Speed  15-20m/min
    10.

     Forming Stations

     12-24 stations
    11.  Cutting Type  Hydraulic cutting, stop cutting
    12.  Hydraulic Power  4kw for cutting to length
    13.  Material of Cutting Blade  Cr12 Mov HRC58-62

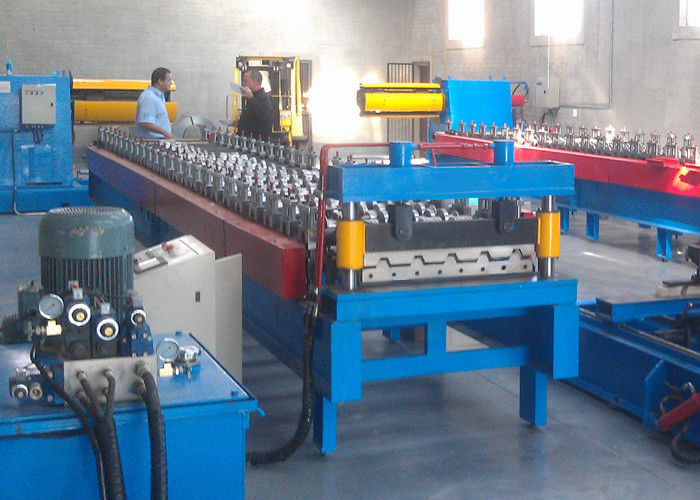

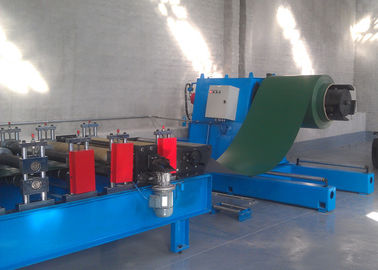

    686 IBR Roofing Machine On Site
