PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

    • PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
    • PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
    • PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
    • PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: BELIEVE INDUSTRY COMPANY
    Certification: CE
    Model Number: BELI 65-220-880

    Payment & Shipping Terms:

    Packaging Details: Standard Seaworthy Packing
    Delivery Time: 55 to 60 days
    Payment Terms: 30% TT as deposite, 70% TT before shipping
    Contact Now
    Detailed Product Description
    Applicable Material: Galvanized Steel Coils Forming Steps: 26 Steps
    Main Power: 22kw Control System: PLC Control System
    Other Name: Steel Floor Deck Roll Forming Line Usage And Function: For Steel Building Construction Industry
    High Light:

    roll forming machine

    ,

    roll forming equipment

    Automatic Metal Floor Deck Roll Forming Machine With PLC Control System



      Brief Description

    This metal roll forming machine is used to produce floor decking sheets used as the flooring system for steel constructions. Main material can be roll formed are 0.8-1.5mm thick galvanized steel coils. With PLC control system, whole line is of high automation and easy operation.



    Our Advantages

    • Strict quality control on raw material selecting
    • Mature Machine Design: over 15 years' experience in machine designing and building
    • Rollers & Shafts Processing: CNC machining + heat treatment + surface chrome plate
    • Experienced and professional teams in machine assembling and testing
    • Machine Delivery: deliver the machine on time
    • After-sale Serive Team: our technicians have been to more than 50 countries and regions to serve machine





      Most Essential Technical Parameters



     Material Information
    1.  Material To Be Roll Formed  Galvanized steel coils
    2.  Material Thickness  0.8-1.5mm ( we also have machine for 2.0mm or 3.0mm thick material)
    3.  Feeding Width  According to each profile

     Main Technical Parameters
    1.  Roller Stations  26 forming stations according to clients' profile
    2.  Main Power  22kw
    3.  Drive System  chain drive
    4.  Control System  PLC control system
    5.  Hydraulic Power  5.5kw for cutting
    6.  Roller Material  GCr15, heat treatment and surface with chrome plated
    7.  Shaft Material  40Cr, heat treatment and surface with chrome plated
    8.  Cutting Blade Material  Cr12 Mov, HRC58-62




      Steel Floor Deck Machine Layout

    PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

    1. Machine Components: 5Ton decoiler + roll forming unit + cutting device + final product support table

    2. Work Process: decoiling--->feeding & guiding--->roll forming--->cutting--->final product

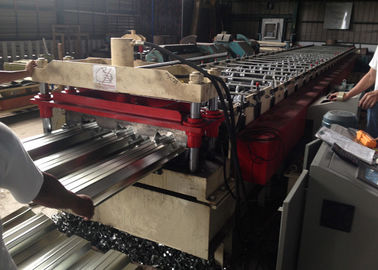

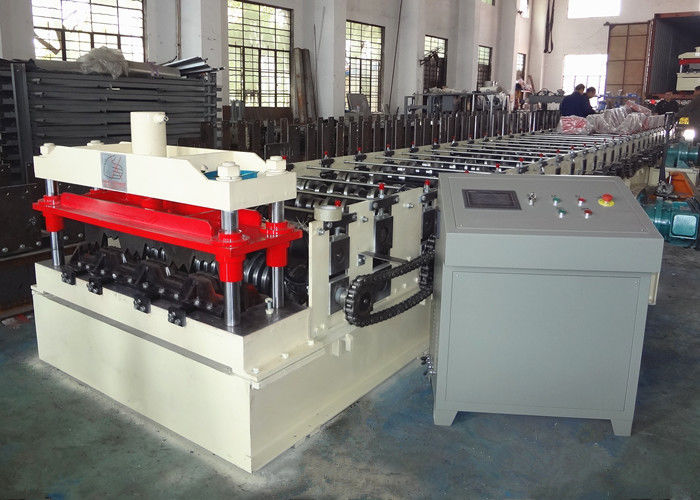

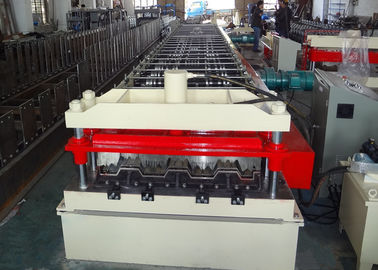

    More Machine Pictures For Reference

    PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

    PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
